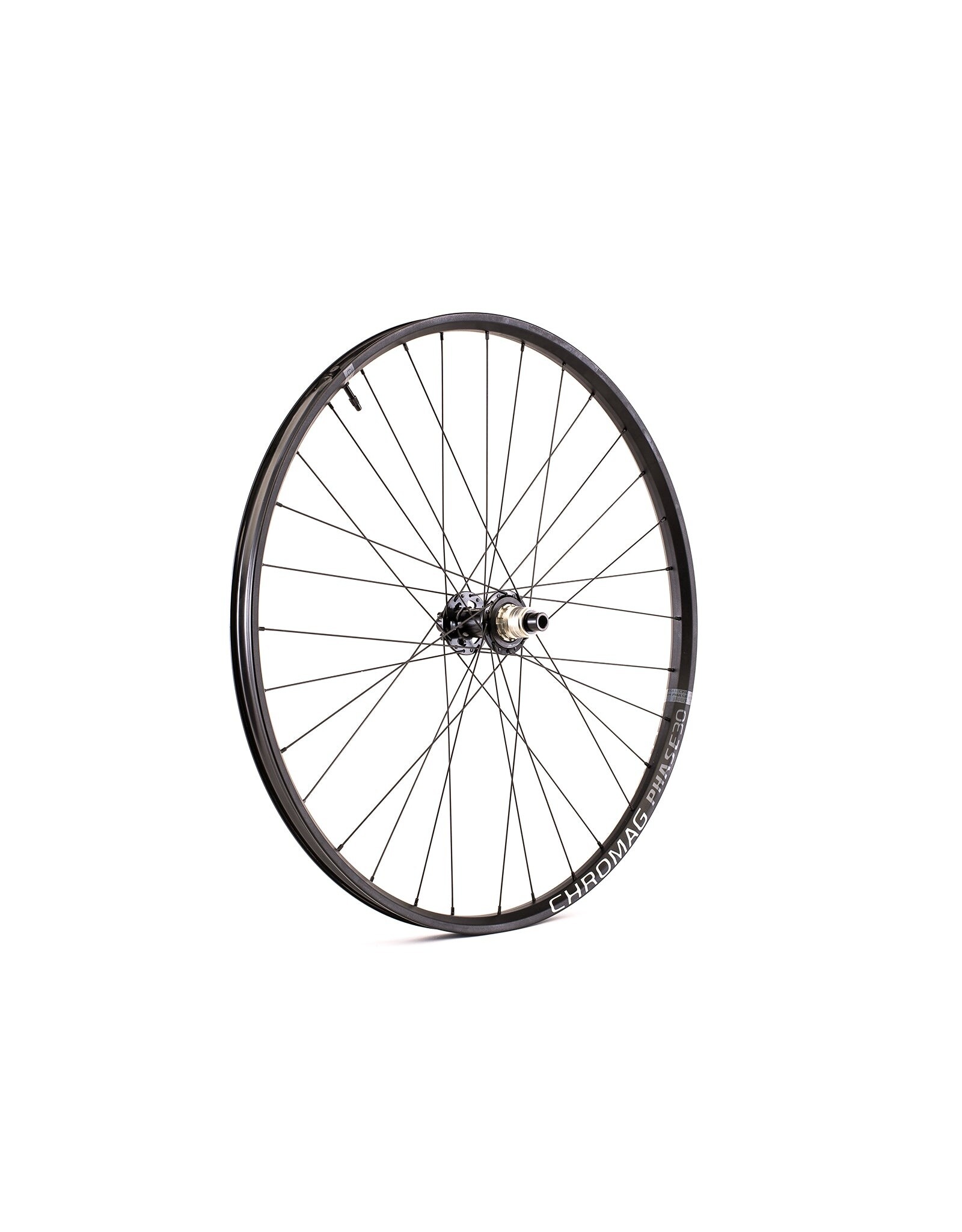

Chromag CHROMAG PHASE30/HG/29 REAR WHEEL 29" BLACK

C$495.50
Availability: In stock

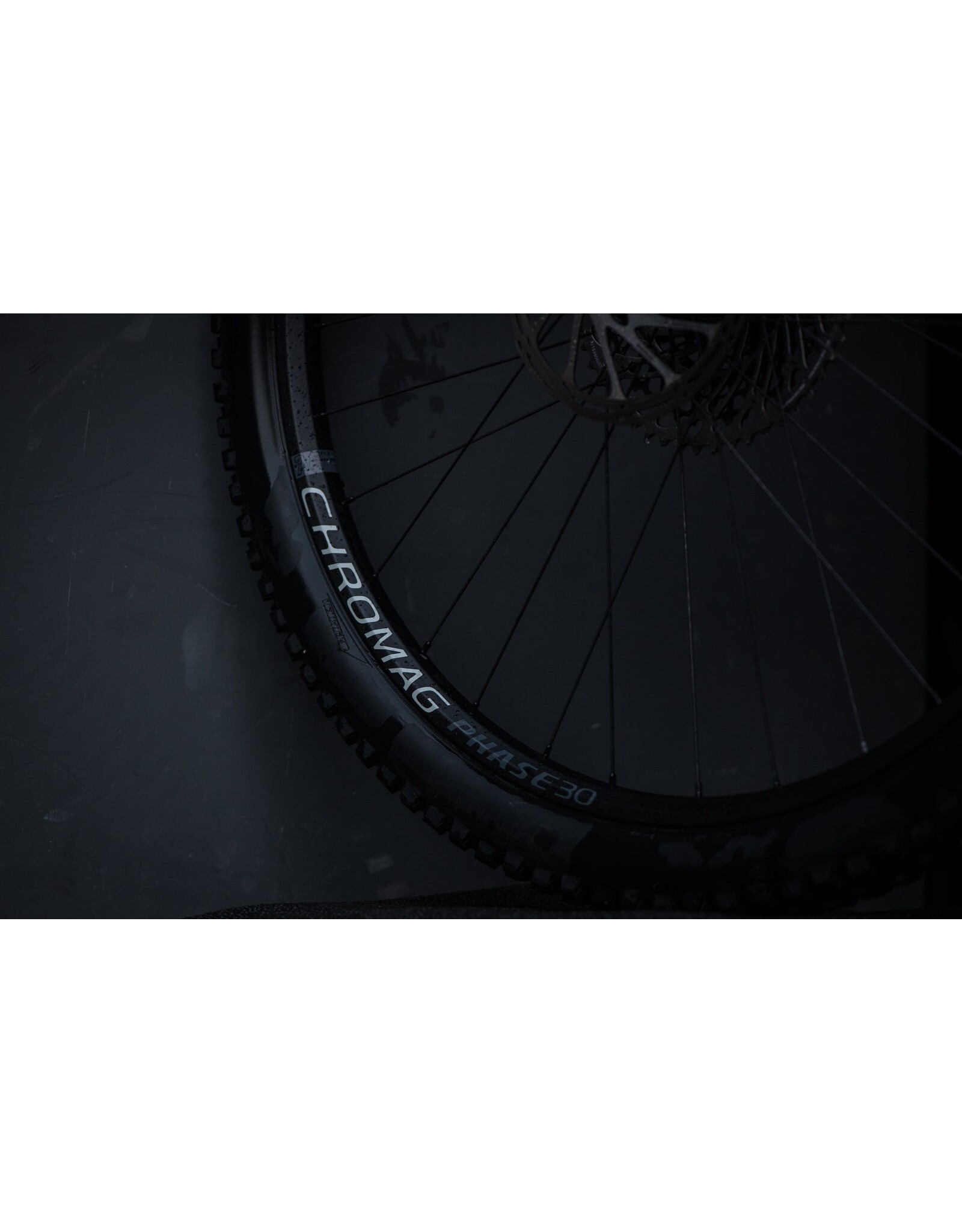

The PHASE30 mirrors Chromag's BA30 profile but in a lighter format that suits all mountain and trail riding conditions.

This is a high quality alloy rim that is tougher than most with added protection at the bead-walls for impact resistance and reduced sidewall cuts. The nipple/spoke bed is oriented to the spoke direction to reduce weakness caused by bend in the spoke at the nipple hole. The PHASE30 is made with premium alloy, extruded and carefully formed for consistent shape. It is then fusion welded and ground for a strong precise finish. Their fusion welding system leaves a perfect seamless joint that becomes the strongest section of the rim ensuring that your rim won’t split at the seam if you have an impact there.

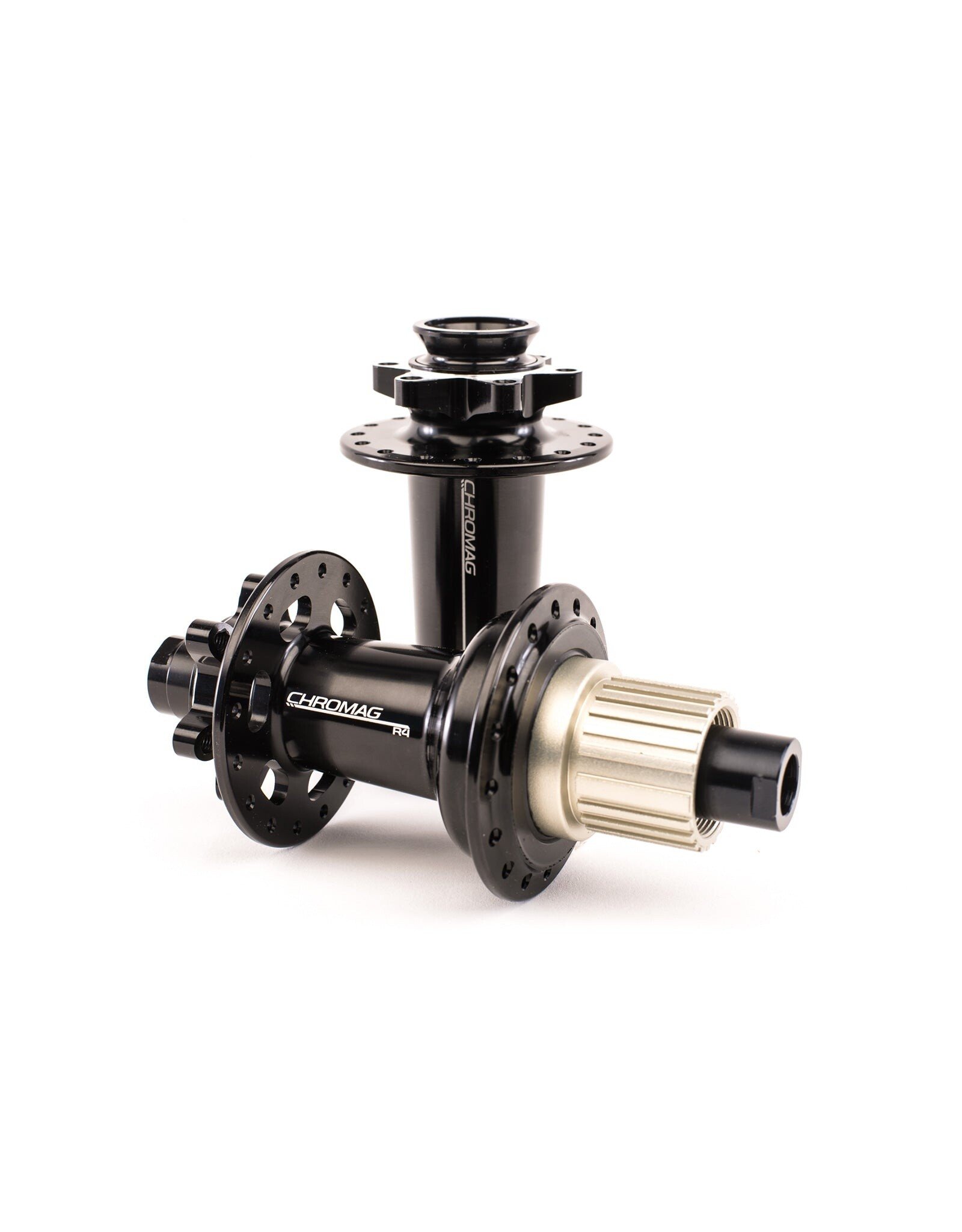

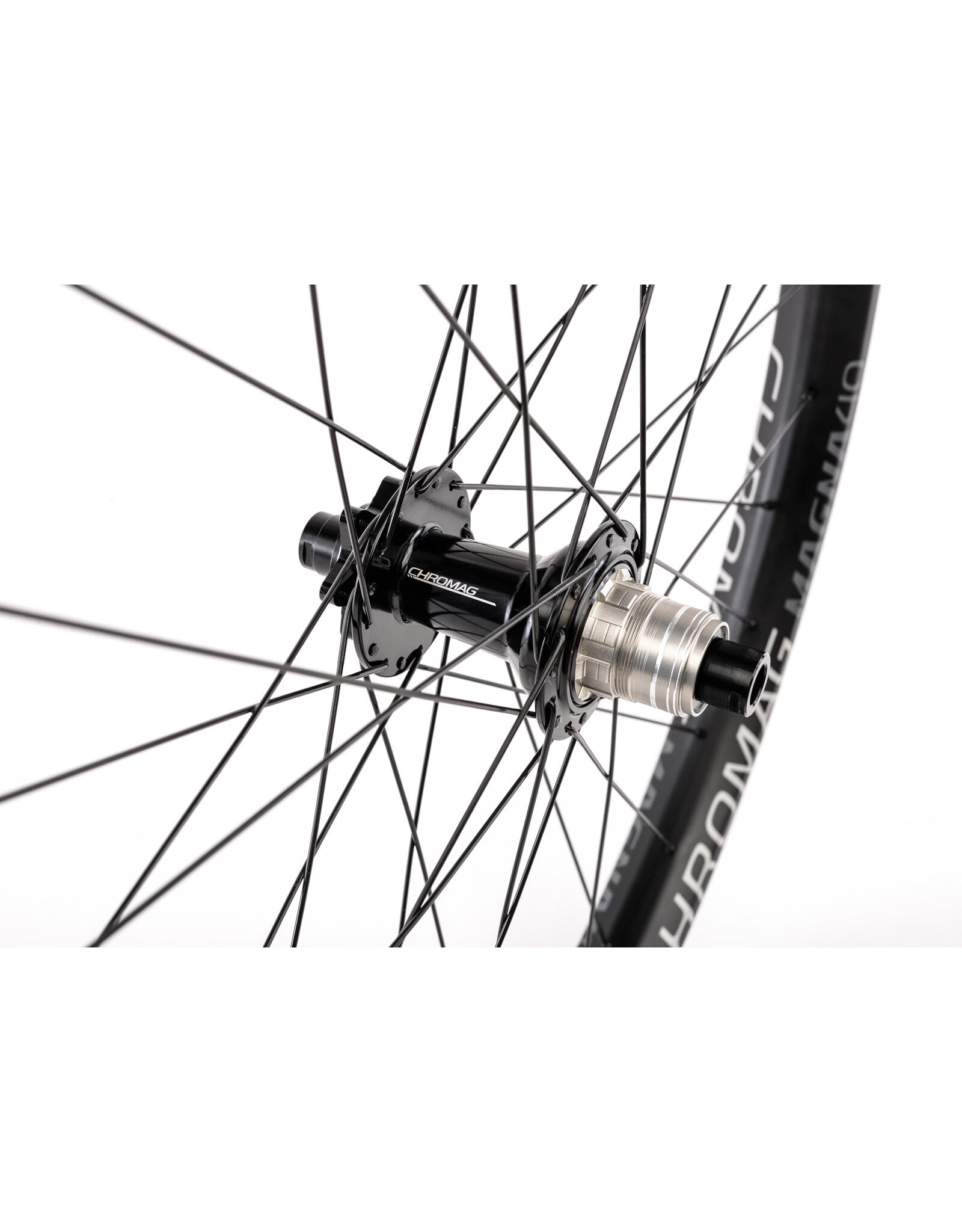

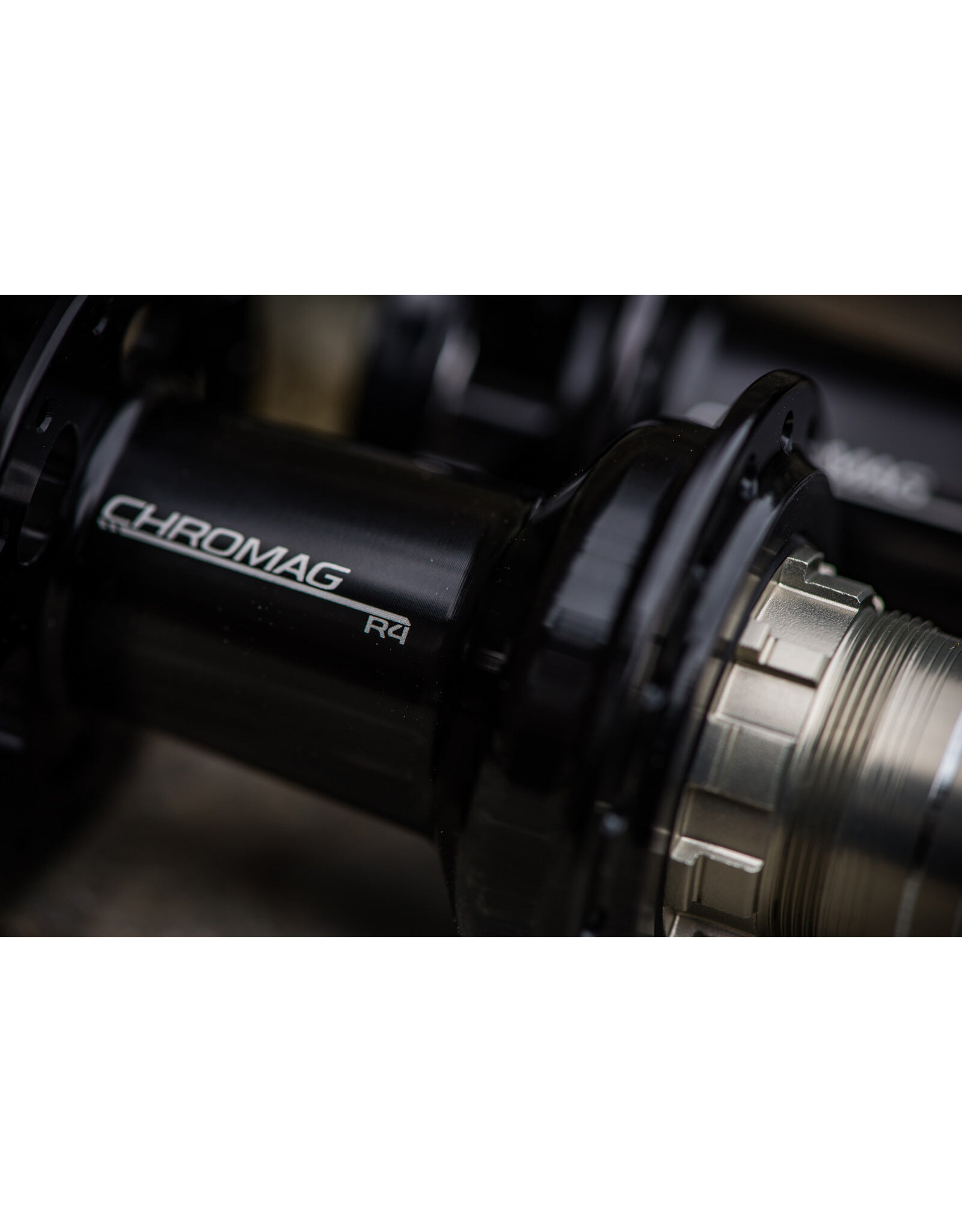

The rims are laced to Chromag's new R4 hub. The R4 is designed to be a solid, reliable hub with a durable axle assembly and robust set of bearings. They're using a tried and tested 4-pawl arrangement with 36 points of simultaneous engagement.  What sets it apart is the large radius that the pawls are positioned on, reducing leverage at the point of engagement.

Chromag opted for a Chromoly steel axle for stiffness and longevity.  Using steel allows a smaller diameter axle which in turn gives us more room to use larger, sealed bearings (we use USA made enduro bearings). The rear axle assembly uses thread-on end caps which are easy to service and resist compression from the frames axle (they don’t fall off during trailside repairs either!). R4 front hubs are available with standard or ‘torque’ end caps and rear hubs are available with XD, HG, or Microspline drivers. Chromag supply all parts for servicing to ensure that R4 hubs can be maintained well into the future!

Material // Premium extruded alloy

Finish // Fusion welded seam-ground finish

Profile // Internal bracing profile / Impact resistant design

Tubeless // Tubeless Ready

Rim Weight // 27.5: 545g / 29: 584g

Internal Width // 30mm

Valve // Presta

Max Tire Pressure 2.4" // 45PSI

Max Tire Pressure 2.8" // 30PSI

Max Spoke Tension // 125KgF

Build Info // 27.5" ERD: 566mm / 29" ERD: 604mm

Hole Count // 32



Axle Diameter // 12mm

Spacing // Boost 148mm

Driver // XD, HG or Microspline

Engagement// 4-Pawl, 36 Point

Spokes // 32

Disc Mount // 6 Bolt
