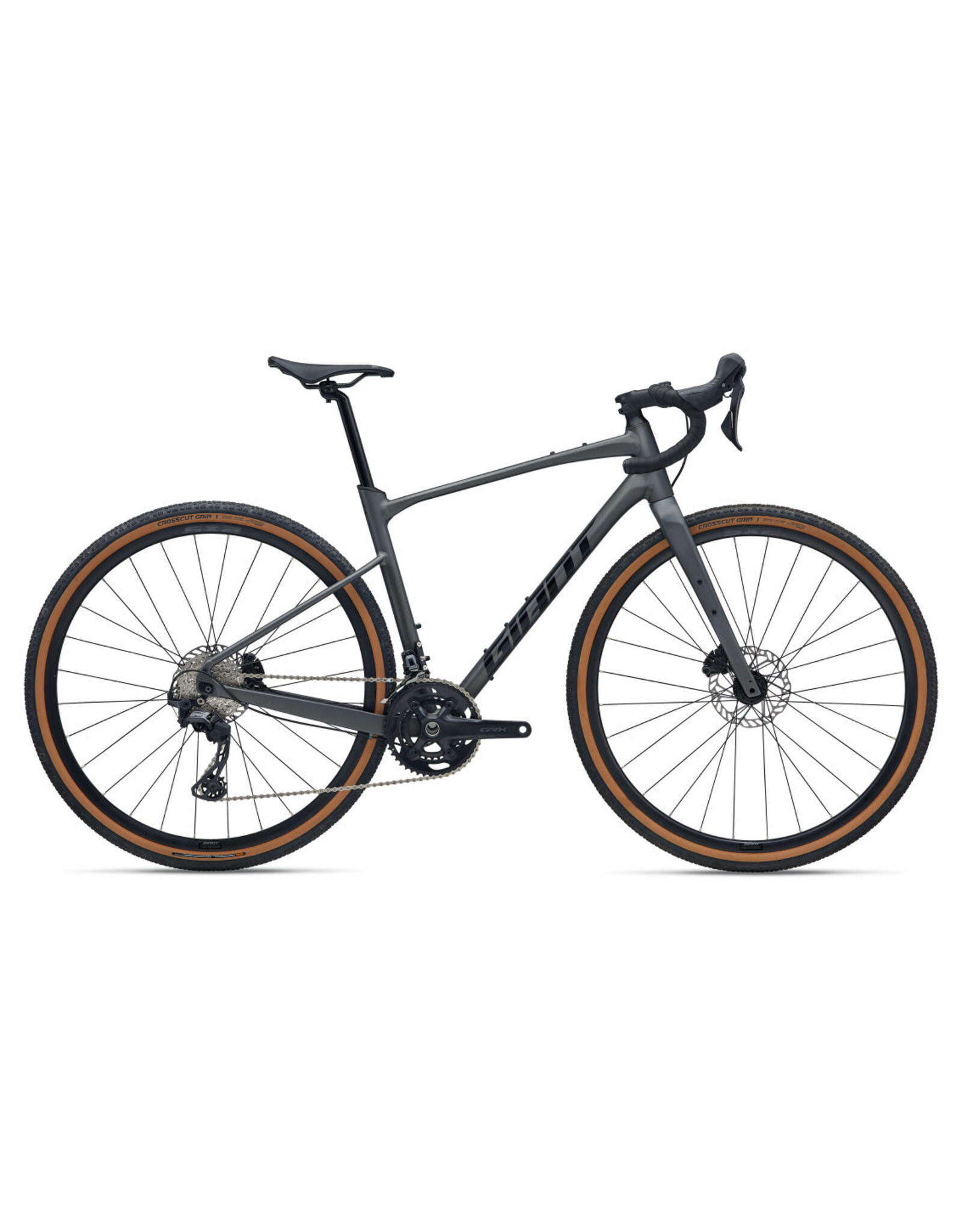

Giant Revolt 0 Stealth Chrome

Availability:	In stock
Delivery time:	We don't ship this product but purchases can be made for in-store pickup

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Key Performance Factors
Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Frame
ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout

Fork
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebar
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips
cork tape with gel

Stem
Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost
Giant D-Fuse, alloy, 14mm offset

Saddle
Giant Grit

Shifters
Shimano GRX RX-610, 2x12

Front Derailleur
Shimano GRX RX-820

Rear Derailleur

Shimano GRX RX-820

Brakes
Shimano GRX RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm

Brake Levers
Shimano GRX RX-610 hydraulic

Cassette
Shimano 105, 11x34

Chain
KMC X12L-1

Crankset
Shimano FC-RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket
Shimano, threaded

Rims
Giant S-X2 , alloy

Hubs
Giant alloy, 12mm thru-axle
Spokes
stainless
Tires
Giant Crosscut Grip 1, tubeless, 700x40c, 60TPI, folding
Extras
tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
Max Tire Clearance
53mm
