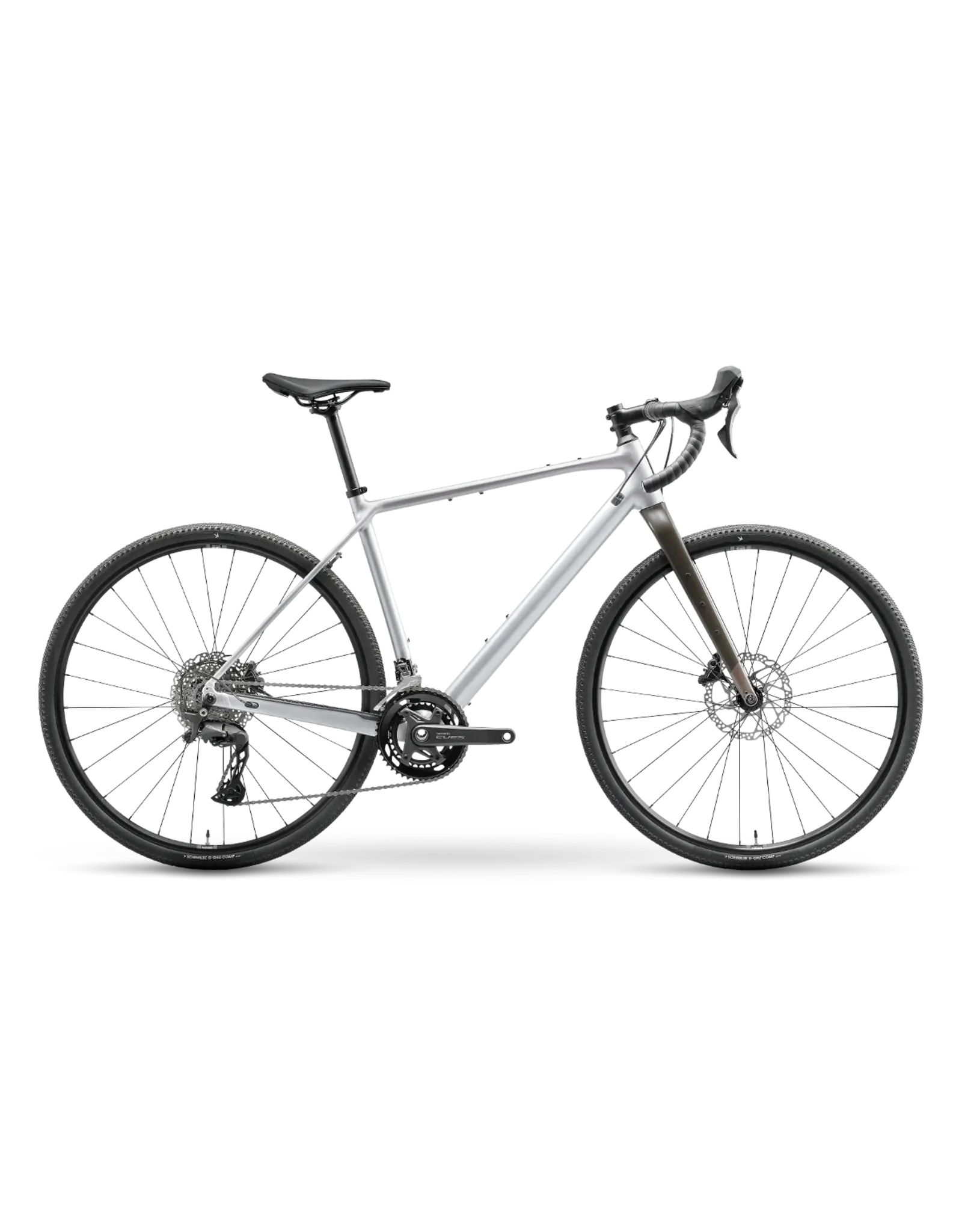

Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing? Search A CUES is ready for your next adventure with modern gravel geo, a lightweight aluminum frame, carbon fork with adventure mounts, Shimano CUES 2x10 drivetrain, tire clearance up to 50c, and full-coverage fender, toptube bag, and water bottle mounts.
| Frame |
Search Butted Aluminum w/Smooth Welds |
| Fork |
Search Carbon, 51mm Offset, 12x100mm TA |
| Rear Shifter |
Shimano CUES ST-U6030, 11sp |
| Rear Derailleur |
Shimano CUES RD-U6020, Shadow, 10sp |
| Front Shifter |
Shimano CUES ST-U6030, 2sp |
| Front Derailleur |
Shimano CUES FD-U6030, 9/10sp, Down Swing |
| Crankset |
Shimano CUES FC-U6030, 46-32T, 170mm |
| Bottom Bracket |
Shimano Cartridge Bearing, 68mm BSA |
| Cassette |
Shimano LG-400, 11-39T, 10sp |
| Chain |
KMC XGlide |
| Front Brake |
Shimano CUES BR-U6030, Resin Pads |
| Front Brake Rotor |
Shimano SM-RT54 - 160mm, C-lock |
| Rear Brake |
Shimano CUES BR-U6030, Resin Pads |
| Rear Brake Rotor |
Shimano SM-RT54 - 160mm, C-lock |
| Brake Levers |
Shimano CUES ST-U6030 |
| Handlebar |
Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree |
| Stem |
Norco SL Alloy 70mm Length, 31.8mm Clamp |
| Seatpost |
Norco Alloy, 27.2mm, 12Deg Offset, 300mm length |
| Headset |
FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 ) |
| Saddle |
Selle Royale SRX Gravel, 148mm |
| Grips |
Griptacular Shockproof Tape 3mm |
| Seatpost Clamp |
Norco Aluminum, 31.8mm ID |
| Front Hub |
Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock |
| Rear Hub |
Shimano FH-TC500 Sealed Bearing, 12x142mm, HG, 28H |
| Rims |
WTB ST i25 2.0, 28h, 25mm ID |
| Front Tire |
Schwalbe G-One Comp, K-Guard Recyclable, 700x40c |
| Rear Tire |
Schwalbe G-One Comp, K-Guard Recyclable, 700x40c |
| Spokes/Nipples |
Sapim Leader 2.0mm - Black w/Black Brass Nipples |
| Valves |
WTB TCS Tubeless Valve, Brass |
| Sealant |
WTB TCS Tubeless Tire Sealant, 8oz/236ml |
| Rim Tape |
WTB TCS 2.0 Solid Strip |
