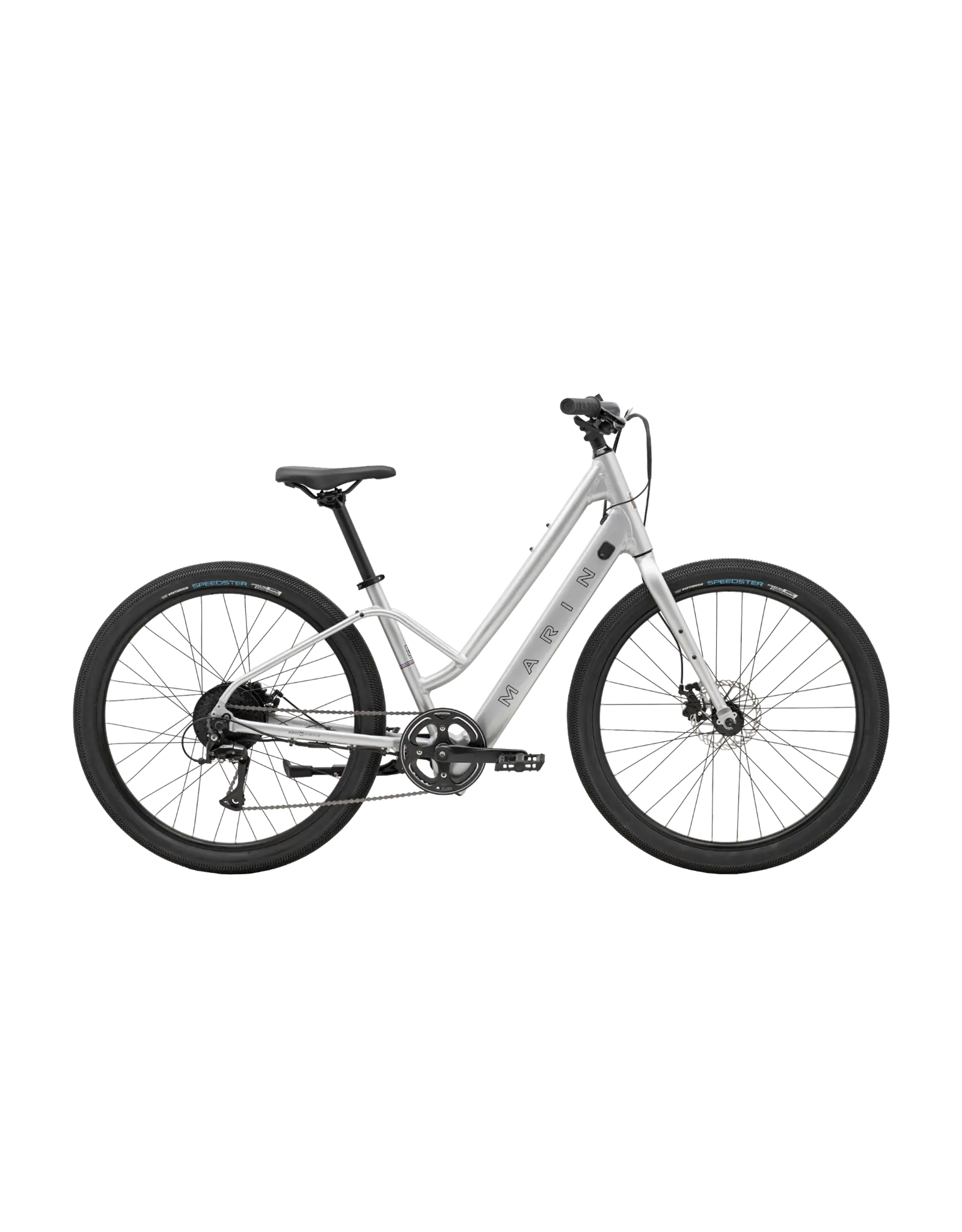

Marin Stinson Electric Step Thru Silver

Availability:	Out of stock
Delivery time:	Please email to get next delivery date

The Stinson E ST takes all the beloved features of the standard model, adds an ease-of-access step-through frame, also delivered with a smooth and powerful 250W rear hub motor to transform the fun and stylish bike into an amazing experience for everything from bike path cruising to daily commuting.



Frame
Series 1 Comfort, E-Bike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts

Fork
CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets

Derailleur Rear

Shimano Acera, 8-Speed

Shift Lever
Shimano Altus 8-Speed RapidFire

Crankset
Alloy Crank, Steel 38T Chainring, Ring Guard

Bottom Bracket
Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper

Chain
KMC Z8

Cassette
SunRace 8-Speed, 11-34T

Brakes Front
Tektro MDM280 Mechanical Disc, 160mm Rotor

Brakes Rear
Tektro MDM280 Mechanical Disc, 160mm Rotor

Brake Levers
Alloy, Long Pull

Handlebar
Marin Alloy, 25mm Rise, 18˚ Backsweep

Stem
Marin Alloy

Grips
Marin County

Headset
FSA, TH No.10P

Seatpost
Marin Alloy, 30.9mm

Saddle
Marin Comfort

Switch
Handlebar Mount LCD Switch & Display

Battery
Bafang 340Wh, 36V, In-tube

Motor
Bafang 250 Watt Hub Motor, 40Nm, 36H

Rim
Marin Aluminum Double Wall, Disc Specific

Hub Rear
Bafang 250 Watt Hub Motor, 40Nm, 36H

Hub Front
Forged Aluminum Alloy, 32H

Spokes
14g Stainless Steel

Tires
Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
